Vyper DOD16 DAS Power Board PWA
| 5930202 | |
| Computed Tomography (CT) | |
| Brivo 385 | |
| GE HealthCare | 교환 - 반품 결함 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Multiple output Board
- Fuse Protected
- Easy to Connect and Disconnect
- Compact design
제품 개요

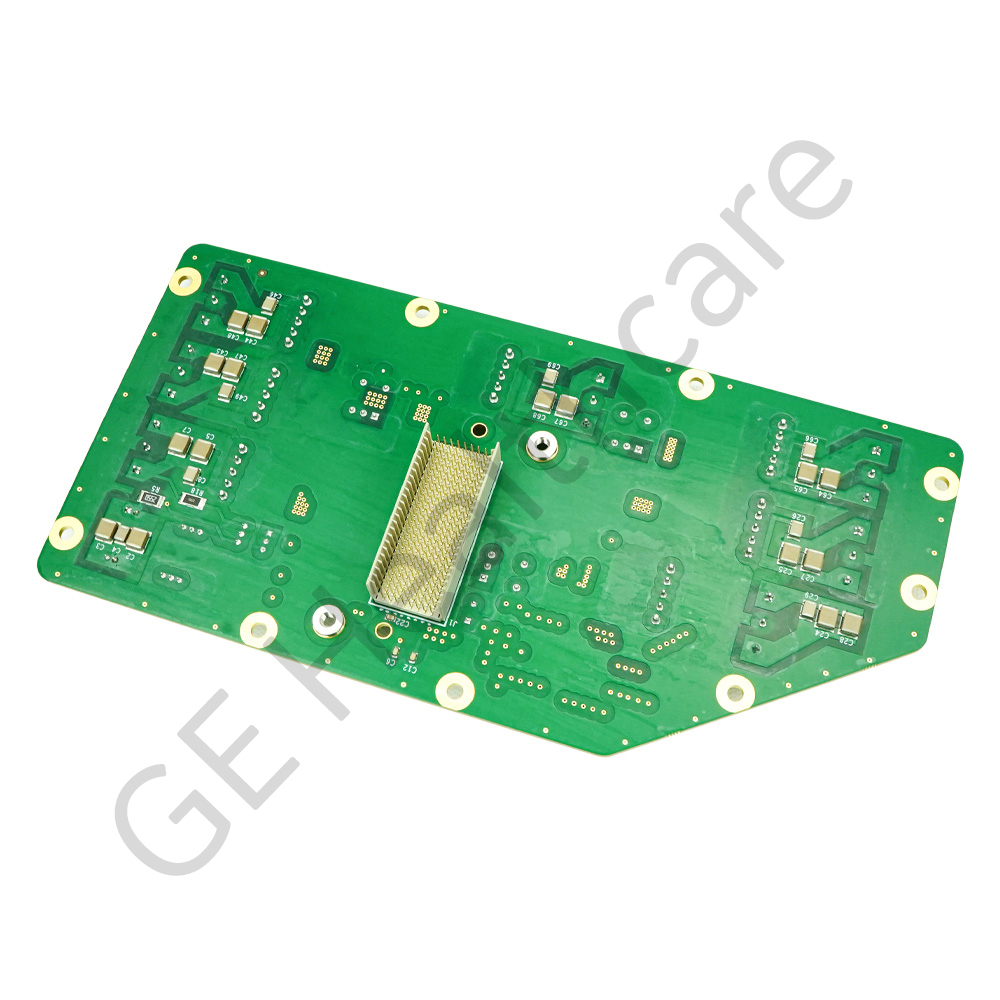

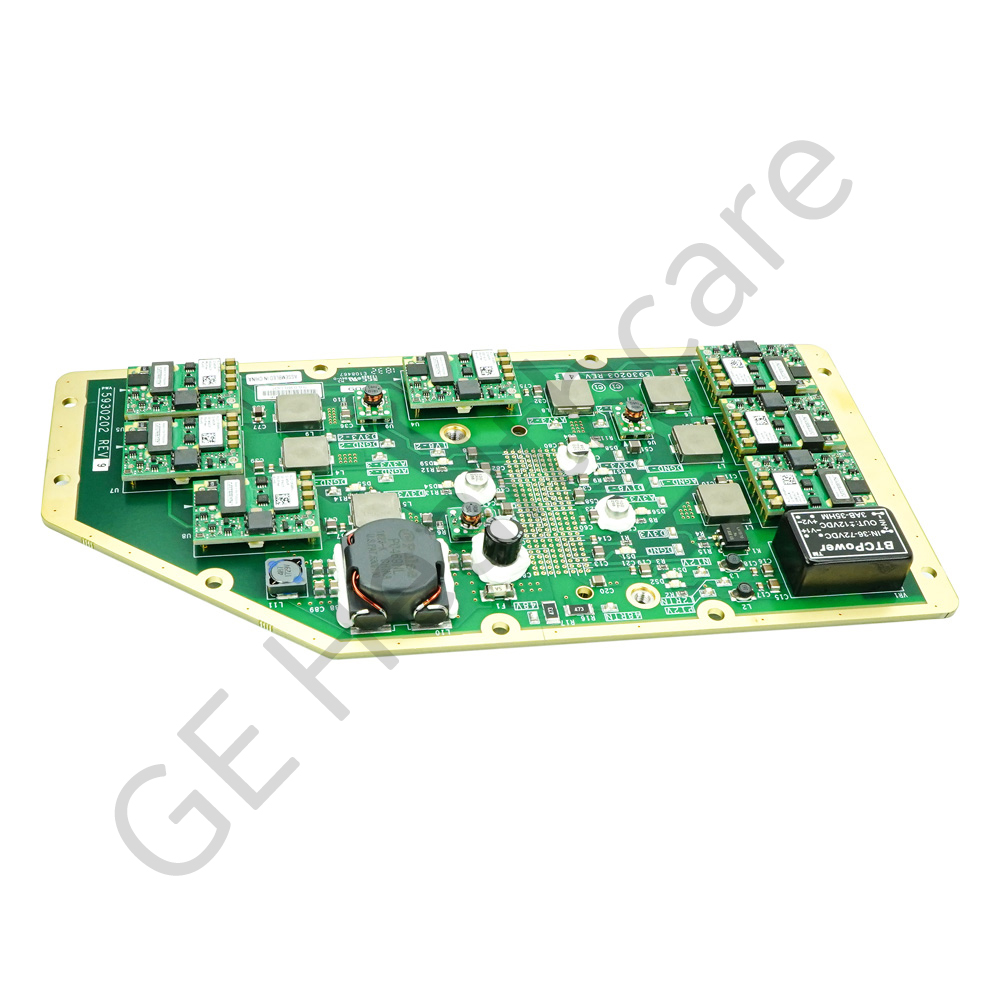

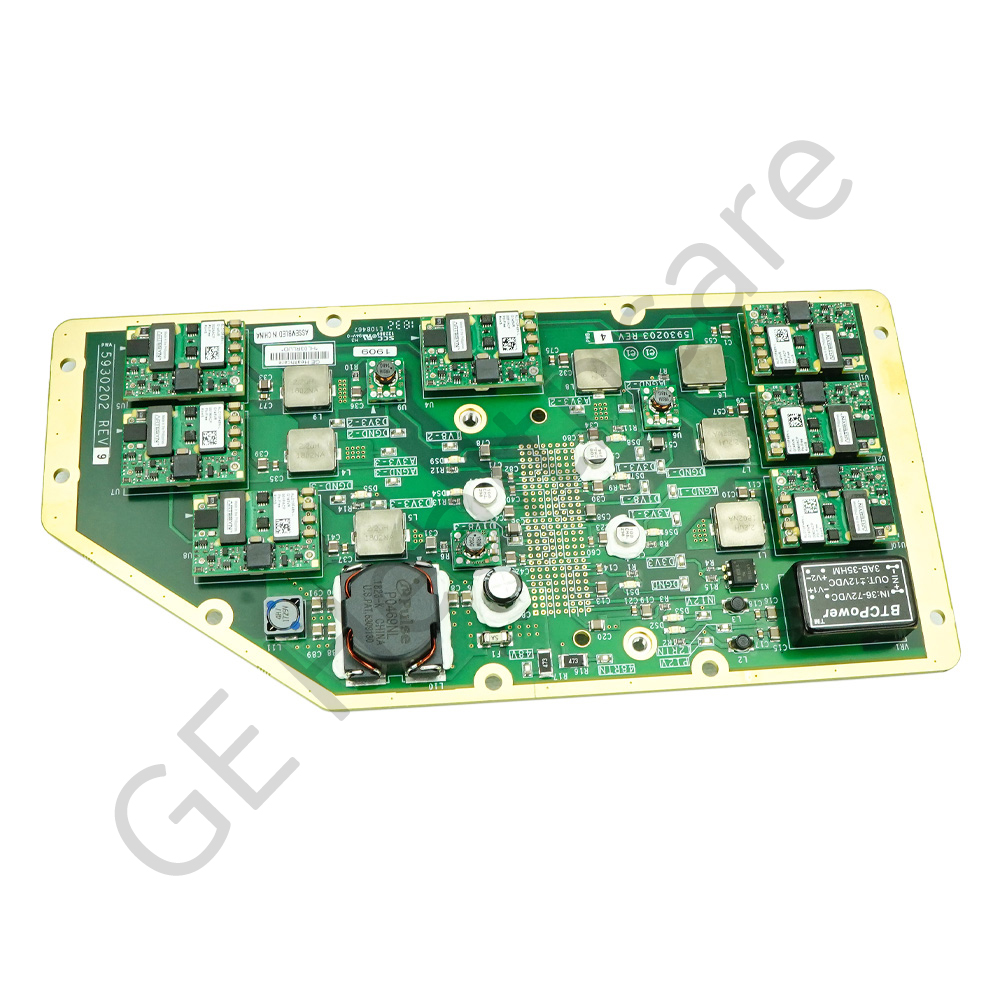

This is a low voltage power supply board which converts DC input voltage into required lower DC voltages. This board is powered with 48 VDC input and provides +12 VDC, -12 VDC, 1.8 VDC and 3.3 VDC outputs. These outputs are used to power various sections of the VDAS DOD16 and DAS DOD57 assembly. The circuit board comes with a 5A/125 V time delay fuse for short circuit protection and LED indicators are provided for all 3.3V, +12 V and -12 V outputs. This power board is is made up of FR-4 Glass fiber, a composite material that consists of glass fabric, electrical grade epoxy resin. This power board can be used with Brivo 385 and Optima 520 systems.
추가 기능
- Reliable performance
- Flamability Ratng of 94V-0
- GSPO
