SFP FRU Kit for 5183329-2
| 5764096 | |
| 5183329-2 | |
| Magnetic Resonance Imaging | |
| Other Magnetic Resonance Imaging (MRI) | |
| GE HealthCare | 교환 - 반품 결함 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Field Replaceable unit (FRU)
- 4.25GBaud Fiber Channel Compliant
- 2.125GBaud Fiber Channel Compliant
- 1.0625GBaud Fiber Channel Compliant
제품 개요

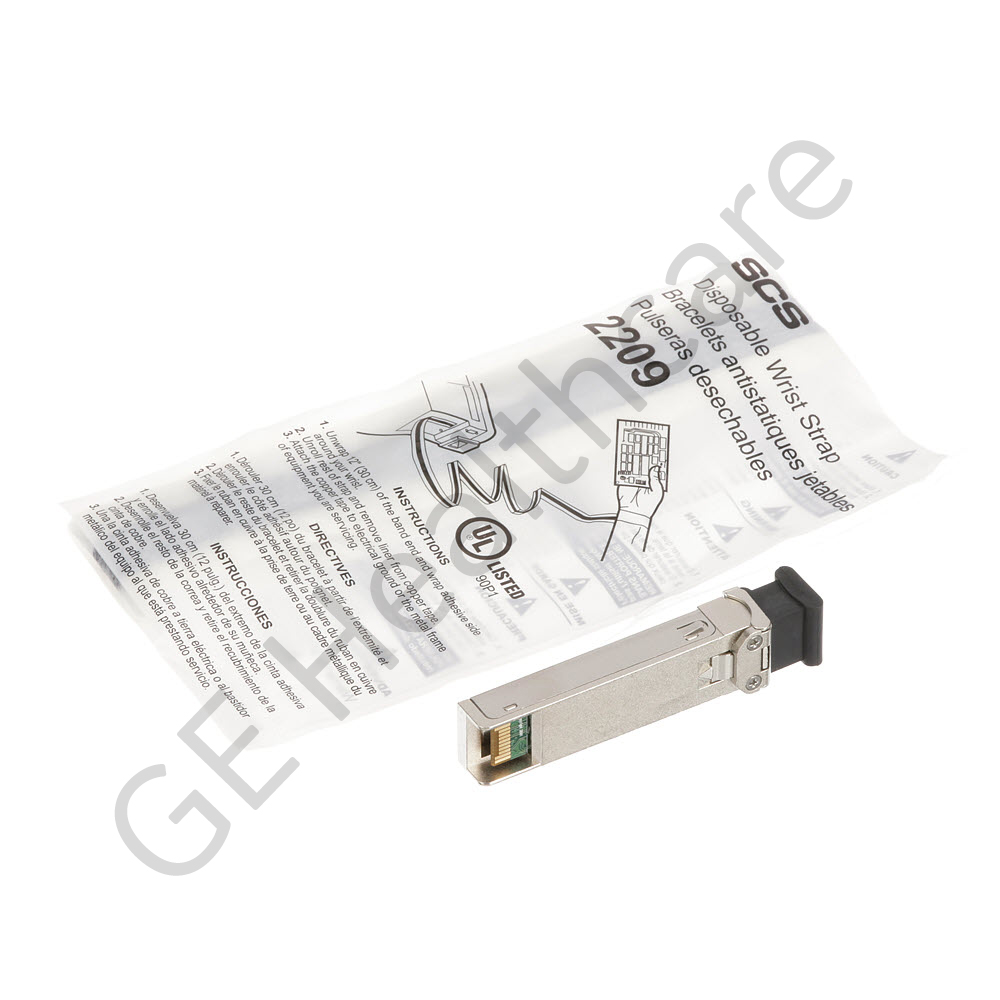

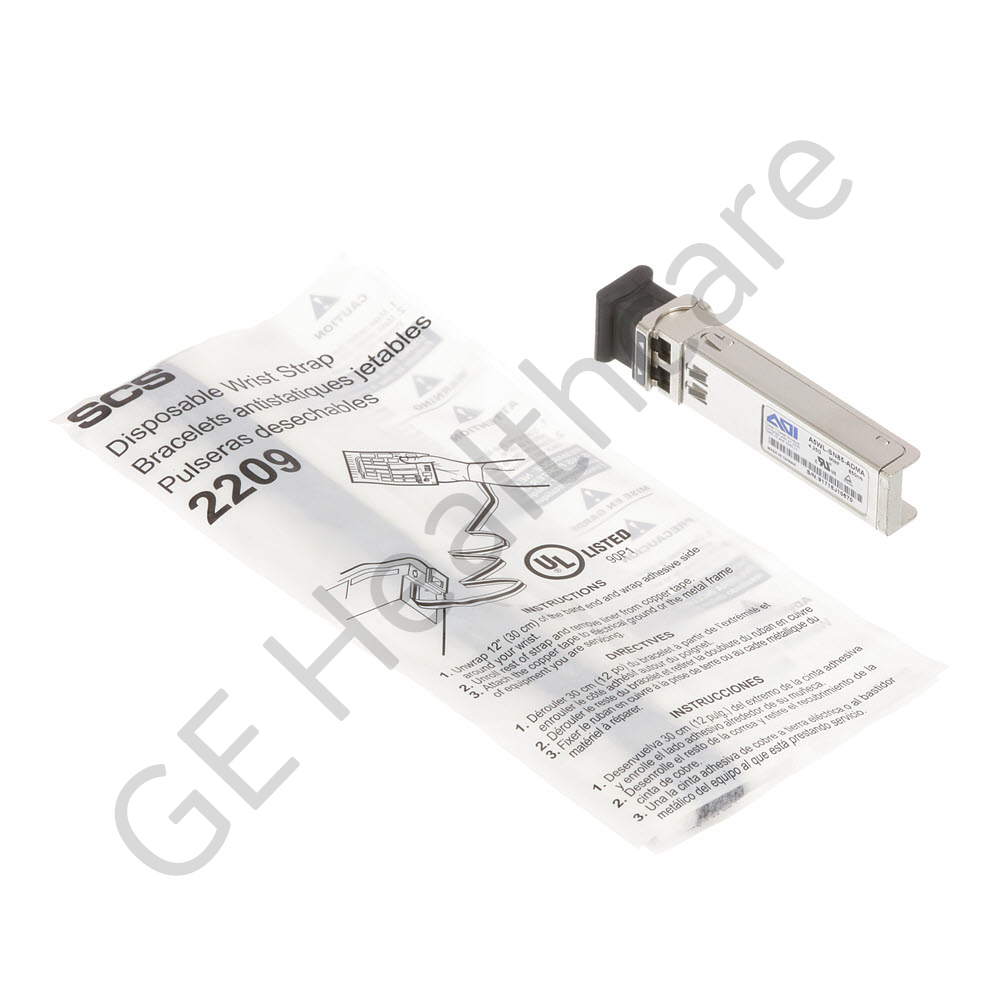

The Small Form-Factor Pluggable (SFP) Kit is a Field Replaceable Unit (FRU) kit consists of a SFP Transceiver, an ESD disposable wrist strap and return Instructions for SFP. The SFP transceiver is a pluggable transceiver module which has high performance integrated duplex data link for bi-directional communication over multimode optical fiber. It is compliant with the Small Form Factor Pluggable (SFP) Multi-Source Agreement (MSA) transceiver specification. It is specifically designed for high speed data links up to 4.25GBaud. The SFP transceiver is hot pluggable which allows a suitably designed enclosure to be changed from one type of external interface to another simply by plugging in a SFP having the alternative external interface. This optoelectronic transceiver module is a Class 1 Laser product compliant with FDA Radiation Performance Standards, 21 CFR Subchapter J. This component is also Class 1 Laser compliant according to International Safety Standard IEC-825-1/EN60825. This FRU kit is securely packaged inside a high quality packaging and are supported by bubble wrap and antistatic bag to avoid physical damage during transit.
추가 기능
- Digital Diagnostics Monitoring Interface (DDMI)
- Compliant with SFP MSA Specification
- 100 Differential AC Coupled Inputs/Outputs
- Metal Housing
- Serial ID Functionality
- Hot pluggable
- Single +3.3V Power Supply
- RoHS Compliant
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 5183329-2 | 5183329-2 |
