Grid Partial in sensor cable
| 5488253 | |
| X-Ray | |
| Optima XR646 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- RoHS complaint
- Non-contact reflective object sensor
- Easy to Connect/Disconnect
- Precise output
제품 개요

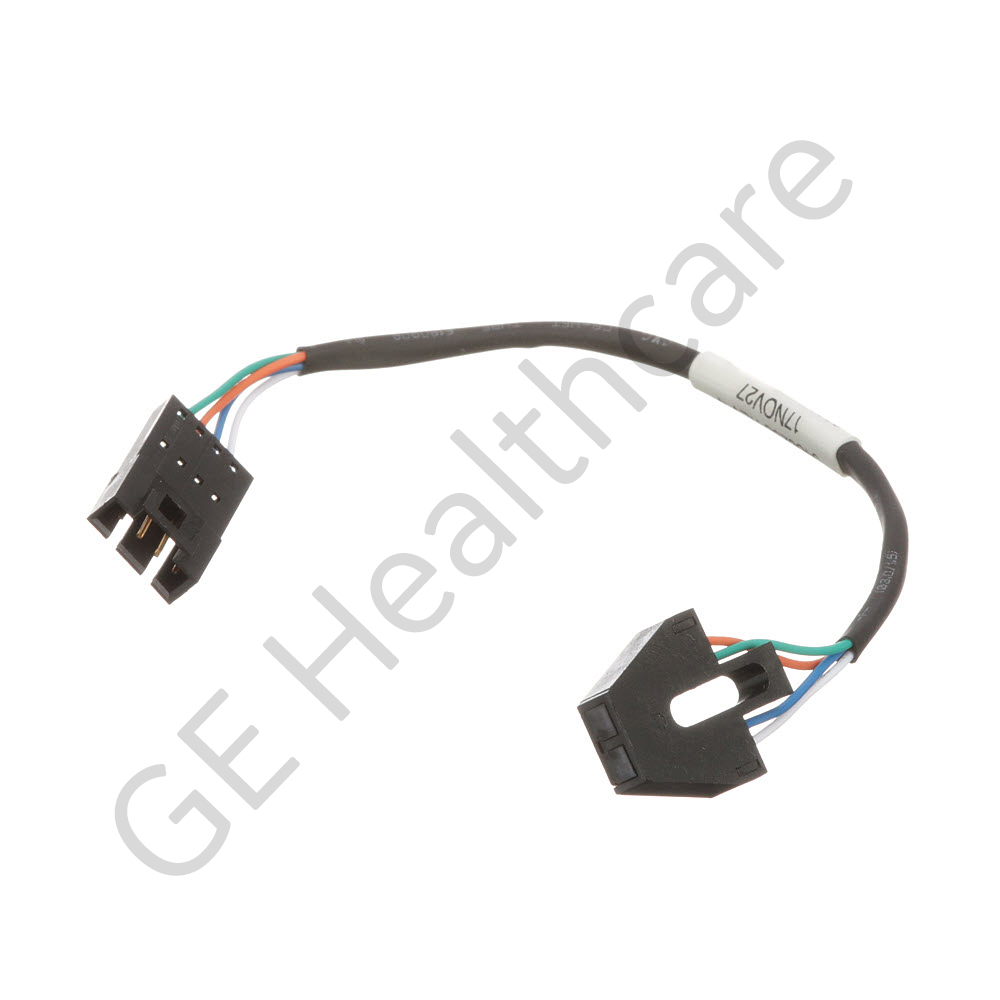

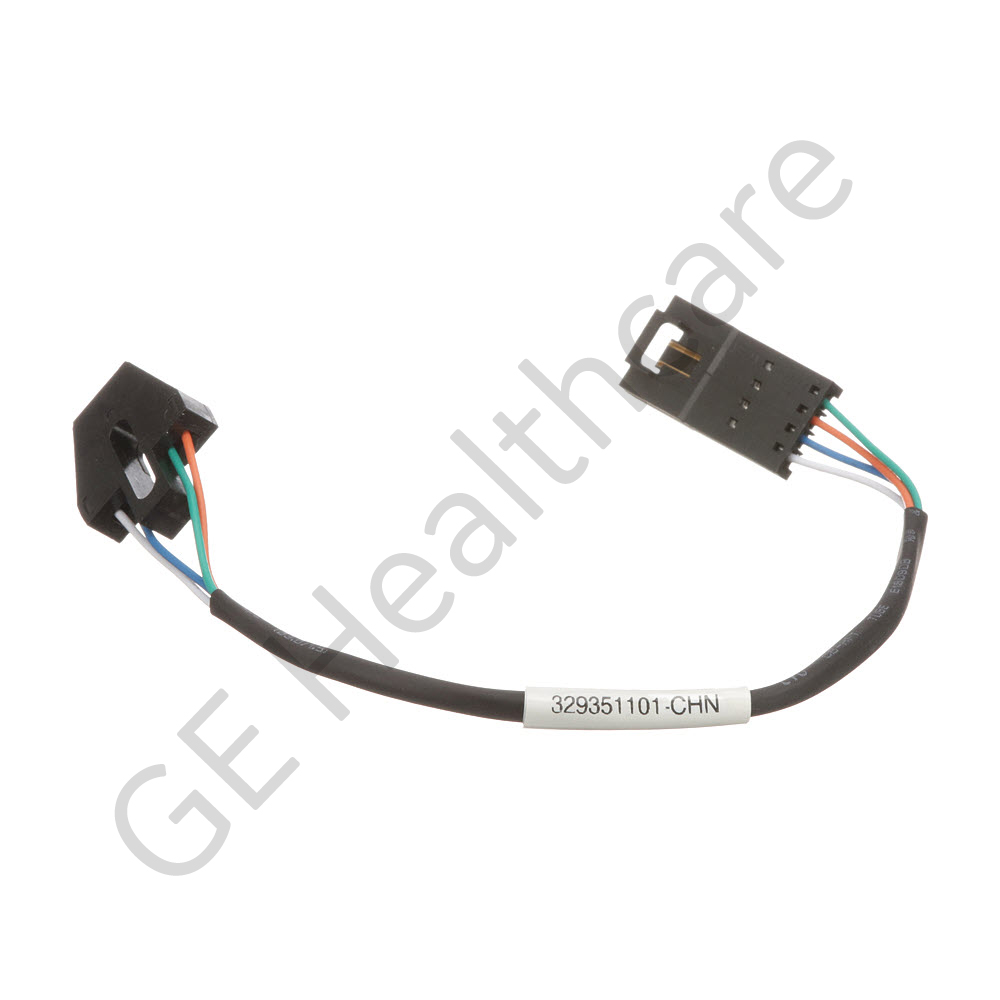

The Grid Partial in Sensor Cable Assembly consists a partial-in sensor with 4 connductors of AWG 26 and a 4 pin connector. These parts are assembled together to form the complete assembly. The partial-in sensor is a reflective object sensor which is used to check whether the grid is partially inserted into the WS housing for Everest I/II and FeiTian III. In application, it utilizes the output current of phototransistor to judge the grid status. The sensing distance of the sensor is 3.8 mm. The products superior material quality offers reliable operation, efficient functioning and longer life span. This assembly can be used with Definium 6000, Discovery XR656G2 and Optima XR646 systems.
추가 기능
- High sensitivity
- Phototransistor output
- With UL approved cables
- GSPO
