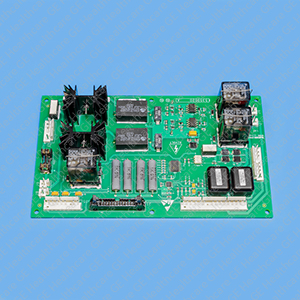

Rotor Control Board
| 5350020 | |
| X-Ray | |
| Definium AMX700 | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- High quality material
- Good structural design
- Good heat resistance
- Easily portable
제품 개요
The Rotor Control Board is used in the AMX4-plus and the AMX 700 systems. It consists of primarily the 60Hz inverter which supplies 60Hz of power to the collimator field lamp, X-ray tube stator, X-ray tube filament and HV inverter module stop capacitor. the sense X-ray tube stator runs and starts winding current. This board can activate and deactivate the safety contactor. The control board consists of a resistor, capacitor, transformer, IC chips, connector slot and cooling unit. A 60Hz 24V square wave’s inverter with a controlled dead band are applied to opto isolators. The opto, in turn drives a push-pull driver stage consisting of Q60/Q73 and Q61/Q74 and then it feeds to the ZMOD1 and/or ZMOD2 which consist of MOSFET transistors that are responsible for energizing the output transformer in push-pull mode. The output transformer feeds back to the rotor band which distributes the output to a specific subsystem and generates diagnostic outputs used by the controller board.
추가 기능
- Lightweight
- Handle with care and safety
- GSPO
