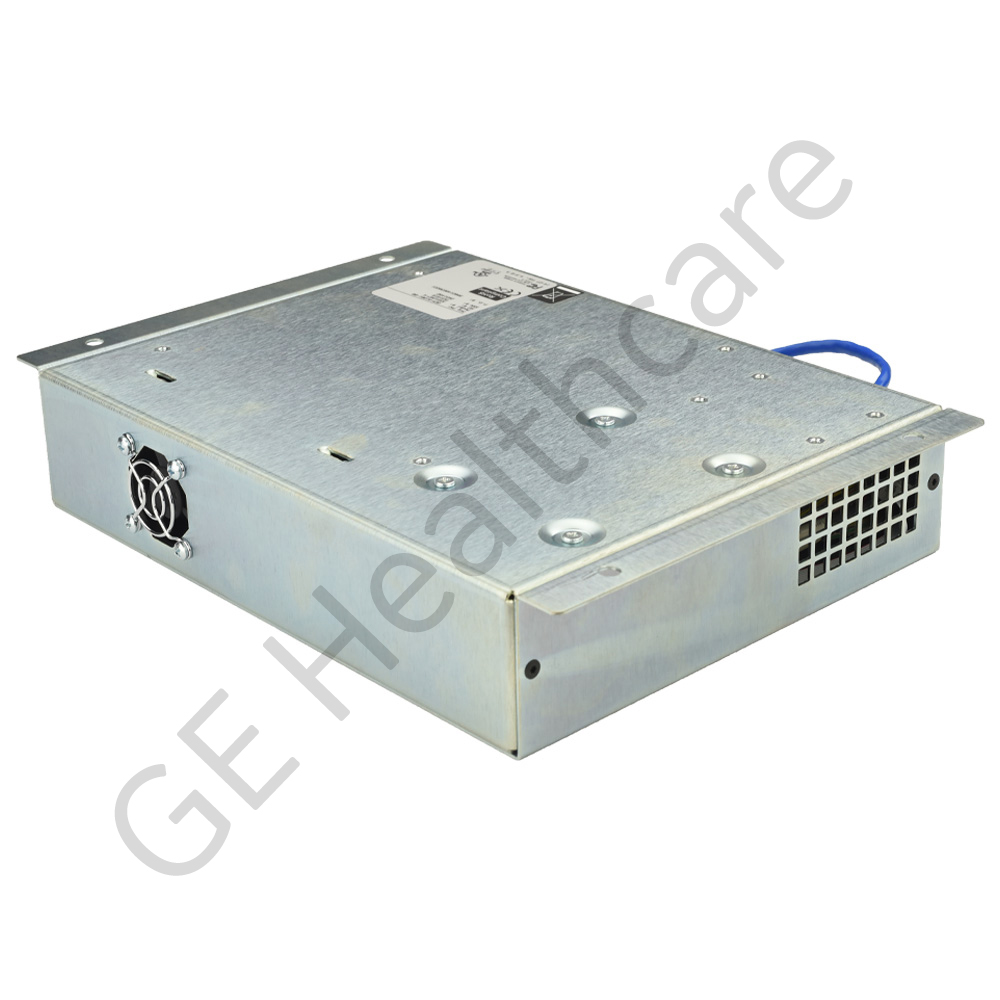

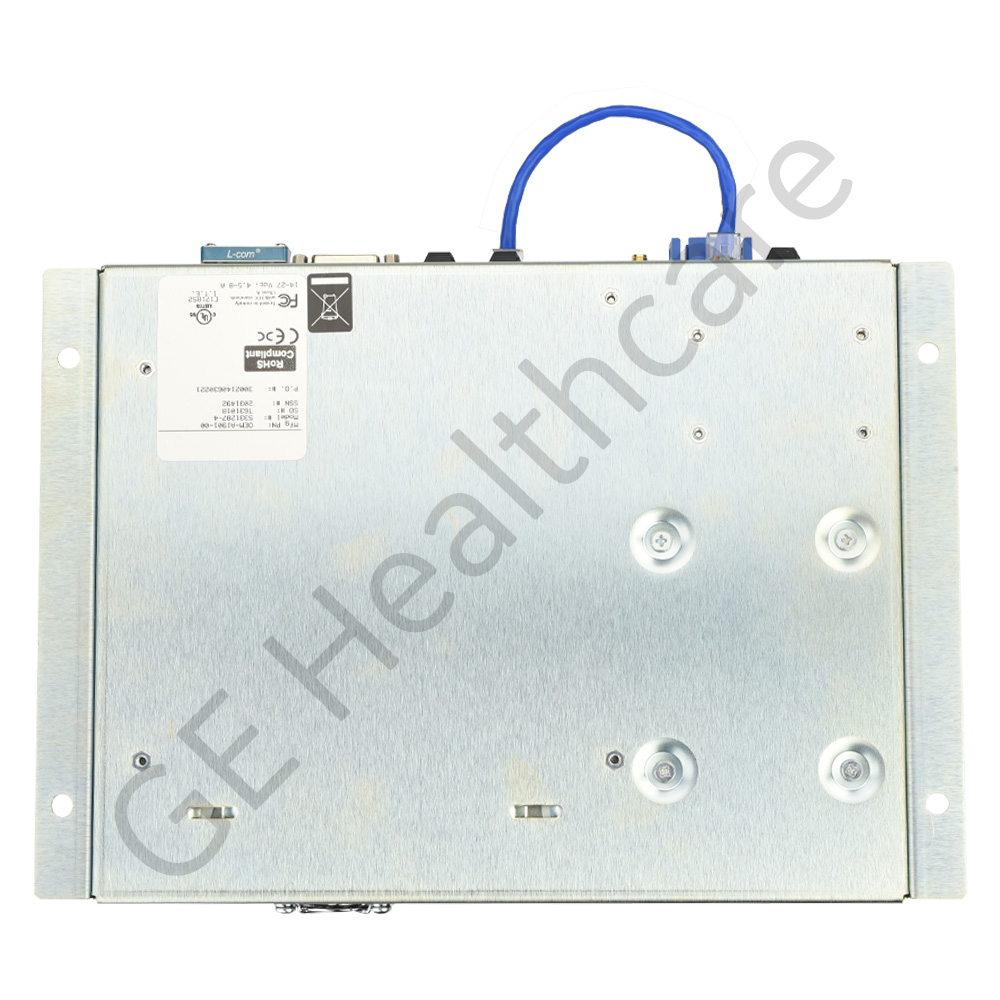

Single Board Computer for X-Ray Mobile with six USB ports, two 1000Mbps Ethernet ports, LVDS display output, Atheros 802.11n miniPCI card.
| 5331287-4 | |
| 5331287-2 5331287-3 5331287-4-H 5331287-4-R | |
| X-Ray | |
| Other X-Ray | |
| GE HealthCare | 교환 - 반품 결함 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Fast processing power
- With Wifi Card
- High data transmission
- Compatible with many machines
제품 개요
The Single Board Computer for X-ray Mobile consists of a Intel mobile core 2 duo T7500 2.2GHz CPU w/ 4MB L2 cache processor, Intel GME965 GMCH chipset, 800MHz Front Side Bus (FSB), supports DDR2 800/667/533MHz memory, one external PS/2 keyboard port, one external PS/2 mouse port, LVDS (Low Voltage Differential Signal) graphics port, six USB ports, two 1000Mbps ethernet ports, LVDS display output and Atheros 802.11n miniPCI card. The PC includes a 250GB 7.2K RPM SATA HDD ( Hard Disk Drive) for storage and a Wireless Wi-Fi interface which supports IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, and IEEE 802.11n. The PC power supply will be supplied with a single 50W input. The input will be 24VDC. It will be used to power all USB devices. A power efficiency minimum of 85% at full load. The Fan speeds, critical temperatures, and system voltage monitoring are available in BIOS. This single board computer can be used with Optima XR220 systems.
추가 기능
- High safety package
- RoHS Compliant
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 5331287-2 | |
| 5331287-3 | Single Board Computer for X-Ray Mobile with Six USB Ports |
| 5331287-4-H | The Single Board Computer for X-ray Mobile consists of an |
| 5331287-4-R | The Single Board Computer for X-ray Mobile consists of a |
