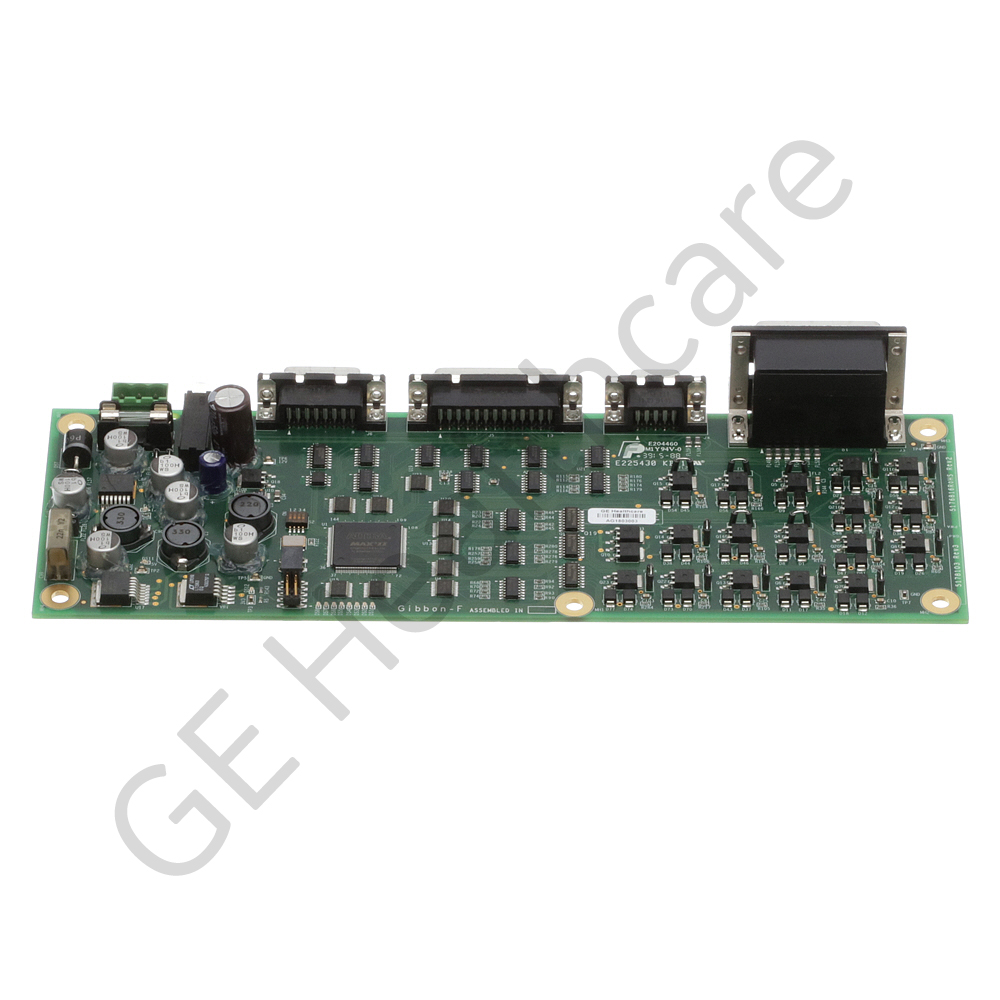

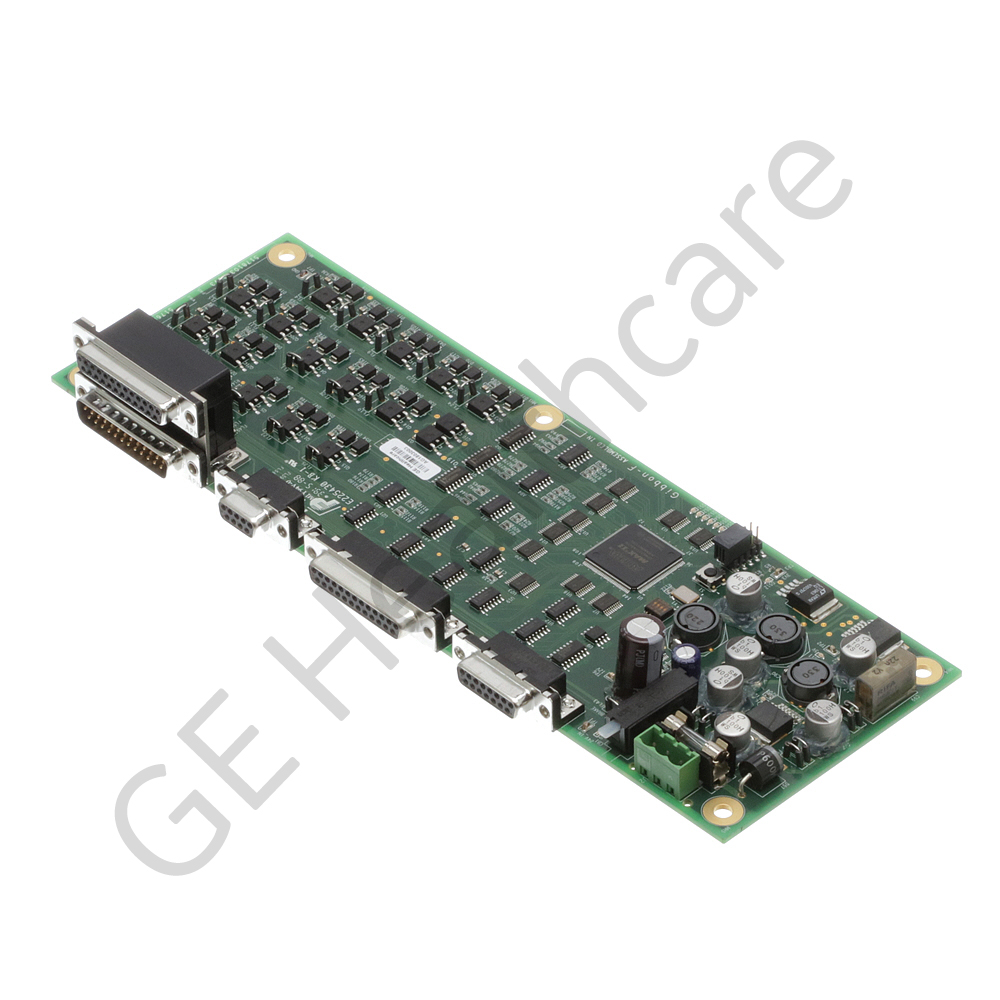

Gibbon-F board Rohs version
| 5176816ROHS | |
| 5176816 | |
| X-Ray | |
| Definium 6000 | |
| GE HealthCare | 교환 - 반품 결함 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Dimensionally stable
- Increased life span
- Low environmental impact
- Enhanced durability
제품 개요
The GIBBON-F Board RoHS Version is used in the X-ray. The primary function of the iPosition-Gibbon-F board is to control all the tabletop locks, response to safety sensors, manual control buttons and communicates with the ALB system for data updating. A 16 MHz crystal on the PWA is used to sample the sensor data real-time to control the locks and LEDs. The Complex programmable logic device function is lateral and longitudinal Brake drive 1 and 2 controls, receptor brake control, grid sensor input sample, TRAD connected sample and SPI communication with ALB. The SPI communicates as a slave node, communicates with Feitian II table ALB with 4 bit preamble value 1010 transfer DI signals and locks feedback signals to ALB (64 bits). The SPI inputs and then controls the DO and LED (64 bits). The Gibbon-F board consists of a circuit board, connectors, transistor, diodes, resistor and capacitors that are found in the assembly. All these are arranged and kept in a carrying case with the shipment label. The product is securely packaged inside a high quality packing box to avoid physical damage during transit. It is used in a wide range of medical devices such as Optima 660 M40 GT1700 Hino, Default For MA 11 and other medical diagnostic imaging equipment.
추가 기능
- Easily portable
- Lightweight
- High performance
- It consumes less amount of power
- Accurate and sensitive
- Easy to use
- Low maintenance required
- Reliable and durable
- RoHS compliant
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 5176816 |
