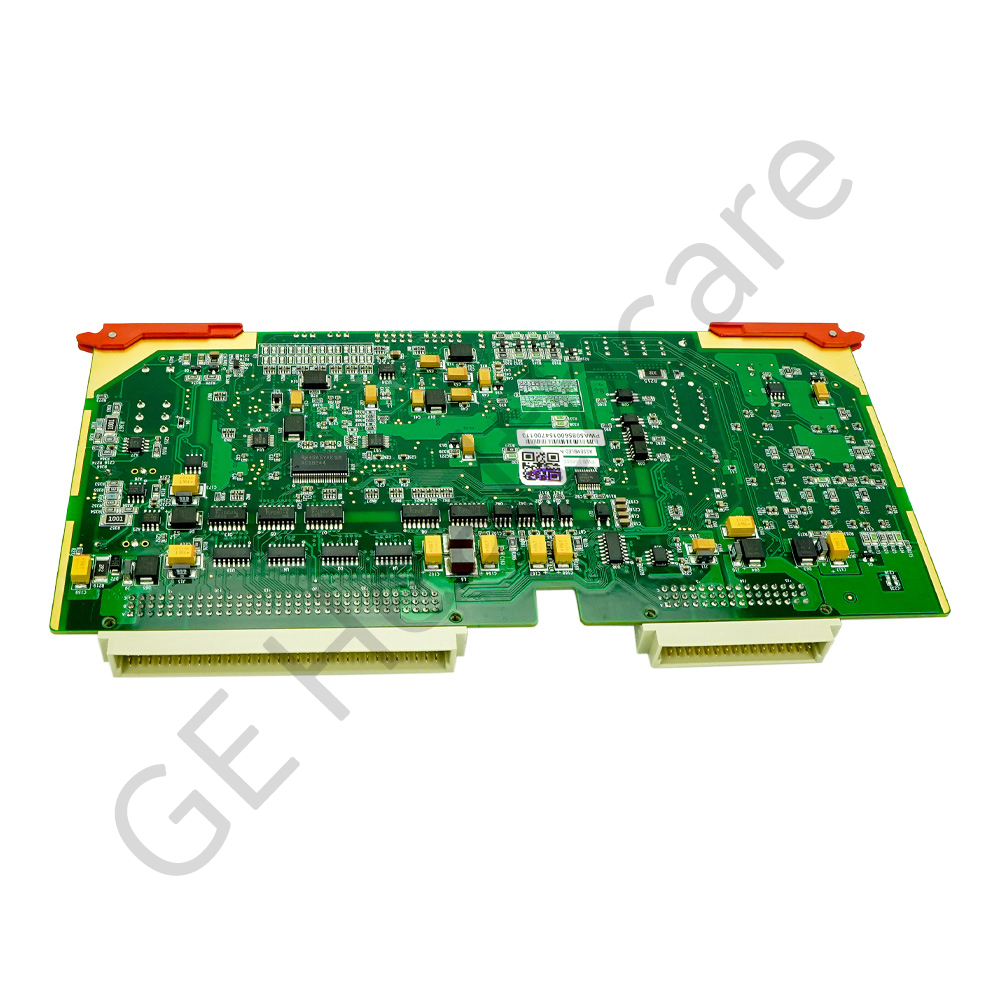

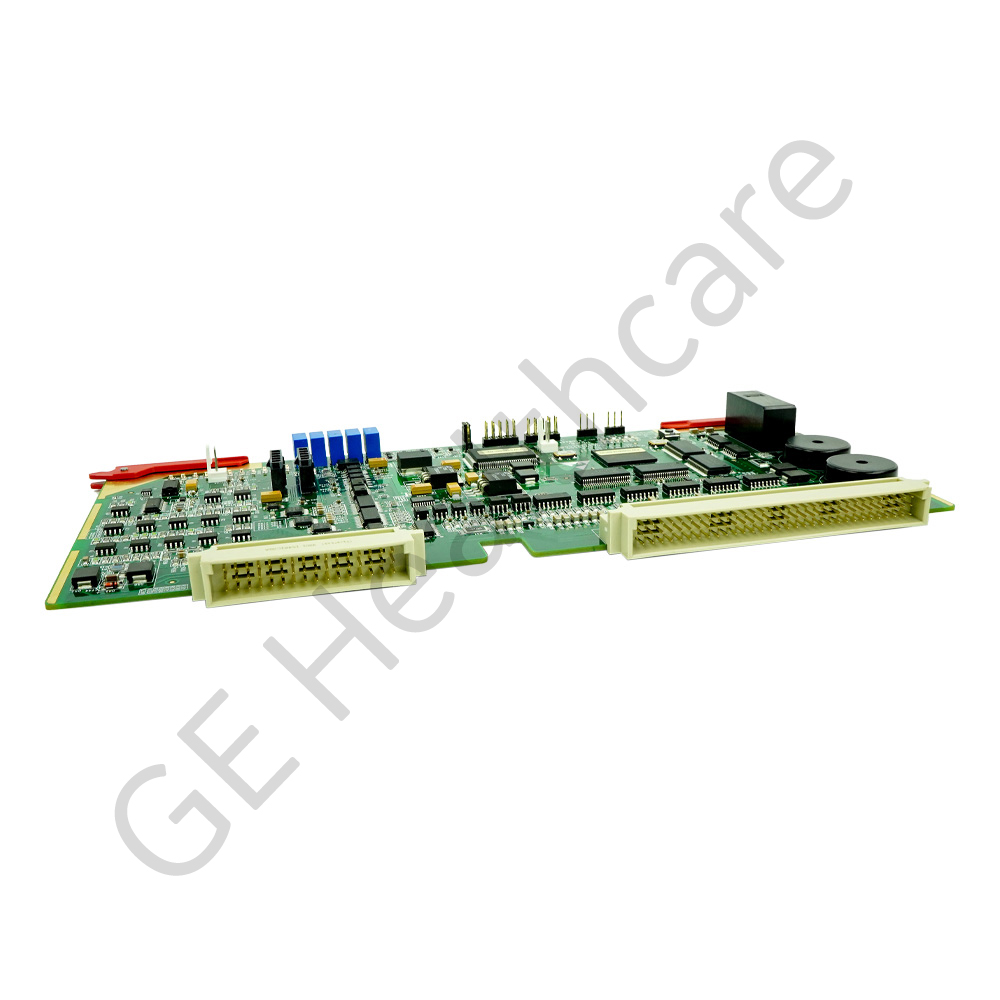

FRU- Mainframe Control Board and APP SW
| 5075986 | |
| 5085600 | |
| OEC Mobile C-Arms | |
| Other OEC Mobile C-Arms | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Field Replaceable Unit (FRU)
- Workstation Software Discs
- Compact design
- Reliable performance
제품 개요
This Field Replaceable Unit (FRU) kit consists of a Mainframe Control Board (MCB), workstation software discs with operating systems (OS) and system applications. The MCB (Mainframe Control Board) is located in C-Arm mainframe and is the main control unit. It is responsible for five functions: X-ray control, Image chain control, User interface, System monitor and Communications with workstation. The power of MCB is driven by power supply 1 & 2 via mother board, and +3.3V, +2.5V & +1.2V are generated from +5V_PS1. The MCB is plugged into the Mother Board, and is connected with other sub-systems through the Mother Board. The circuit board is made up of FR-4 Glass fiber, a composite material that consists of glass fabric, electrical grade epoxy resin. This assembly can be used with Brivo OEC 785 C-arm, Brivo OEC 865 C arm and Brivo OEC 715 systems.
추가 기능
- Control Multiple Functions
- Board with Flamability Rating of 94V-0
- GSPO
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| 5085600 | GE Part |
