LM35 BOARD
| 2326192 | |
| PET/CT | |
| Discovery STE (8 Slice) | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- LM35DM Based Temperature Sensor
- Reilable Performance
- Wide Operating Temperature Range
- As per UL CSA & IEC standards
제품 개요

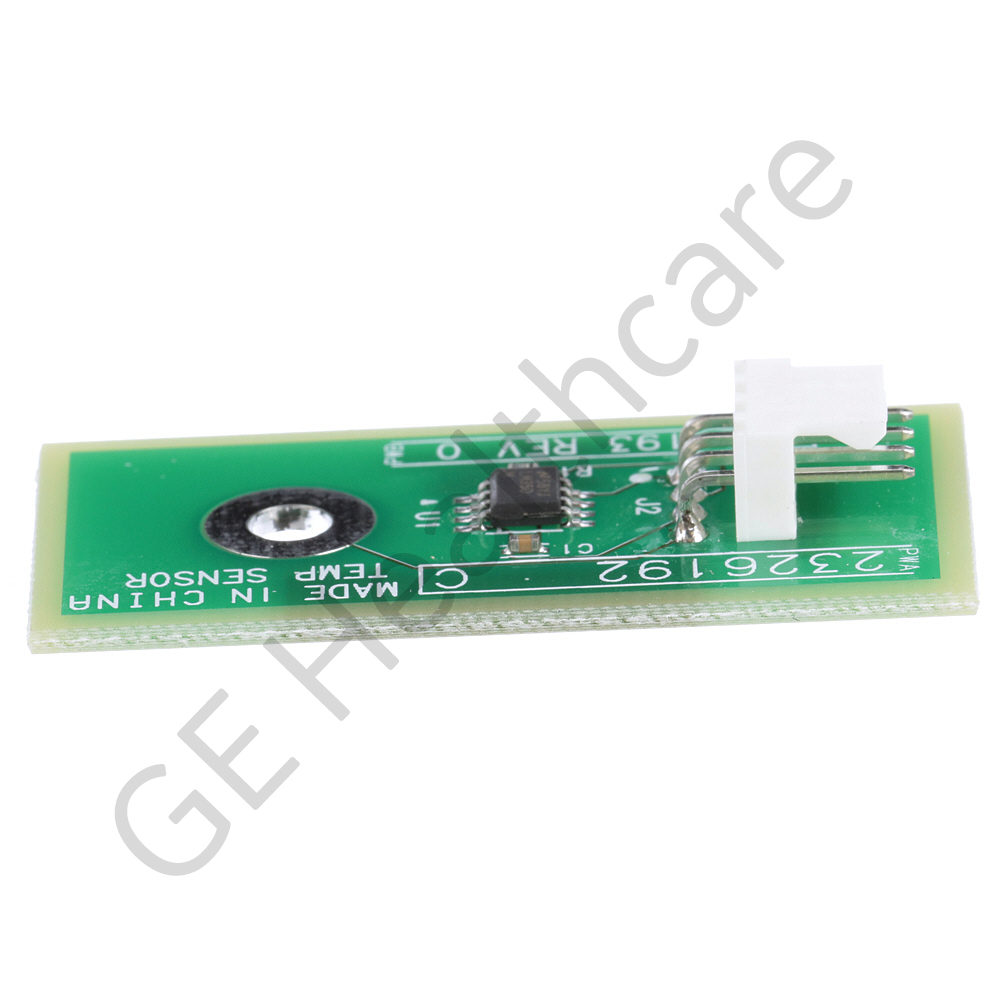

The H-POWER Temperature Sensor Board (TSB) interfaces with the MSUB and is attached to the stationary side of the Computed Tomography System's gantry. The thermal sensor board will provide an analog input signals to the MSUB for measuring the temperature of the gantry within the cover assemblies. This input signal is converted to a digital signal on the Table Gantry Processor board (TGP). This assembly uses high quality LM35DM 8-Pin as the main sensor which is a precision integrated-circuit temperature devices with an output voltage linearlyproportional to the Centigrade temperature. The LM35 device has an advantage over linear temperature sensors calibrated in Kelvin, as the user is not required to subtract a large constant voltage from the output to obtain convenient Centigrade scaling. The assembly has a 4 pin header connector for easy and quick installation. This assembly is designed as per the applicable UL, CSA and IEC standards. The H-Power TSB is compatibe with GE's Lightspeed RT, Xtra, Pro 16, 16, Ultra, Brightspeed Edge, Excel, Elite, Discovery 670, ST etc PET/CT systems.
추가 기능
- Linear Scale Factor of 10MV-Deg C
- Analog Output
- GSPO
