COLOR CONTROL MODULE 7100 VENT WITH 2.1 SOFTWARE
| 2110330-001 | |
| M1106333 | |
| Anesthesia Delivery | |
| Other Anesthesia Delivery | |
| GE HealthCare | 되사기 |
위시리스트에 추가
로그인 하고 장바구니에 추가
날짜를 선택하세요
두 번째 의견 승인 필요
승인 번호를 입력하고 장바구니에 품목을 추가하도록 제출하십시오.
승인 번호
Please enter approval number
OR
승인 번호를 모르십니까? 800-437-1171로 전화하십시오.
처음 세 개의 프롬프트에 opt 1을 입력하고 시스템 ID를 사용할 수 있도록하십시오.
장바구니에 품목을 추가하고
승인 번호, GE는 배송을 위해 주문을 확인하기 전에 연락을 드릴 것입니다.
두 번째 의견 승인 필요
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
특색
- Easily portable
- Replacement of parts are done easily
- High impact resistance
- GSPO
제품 개요

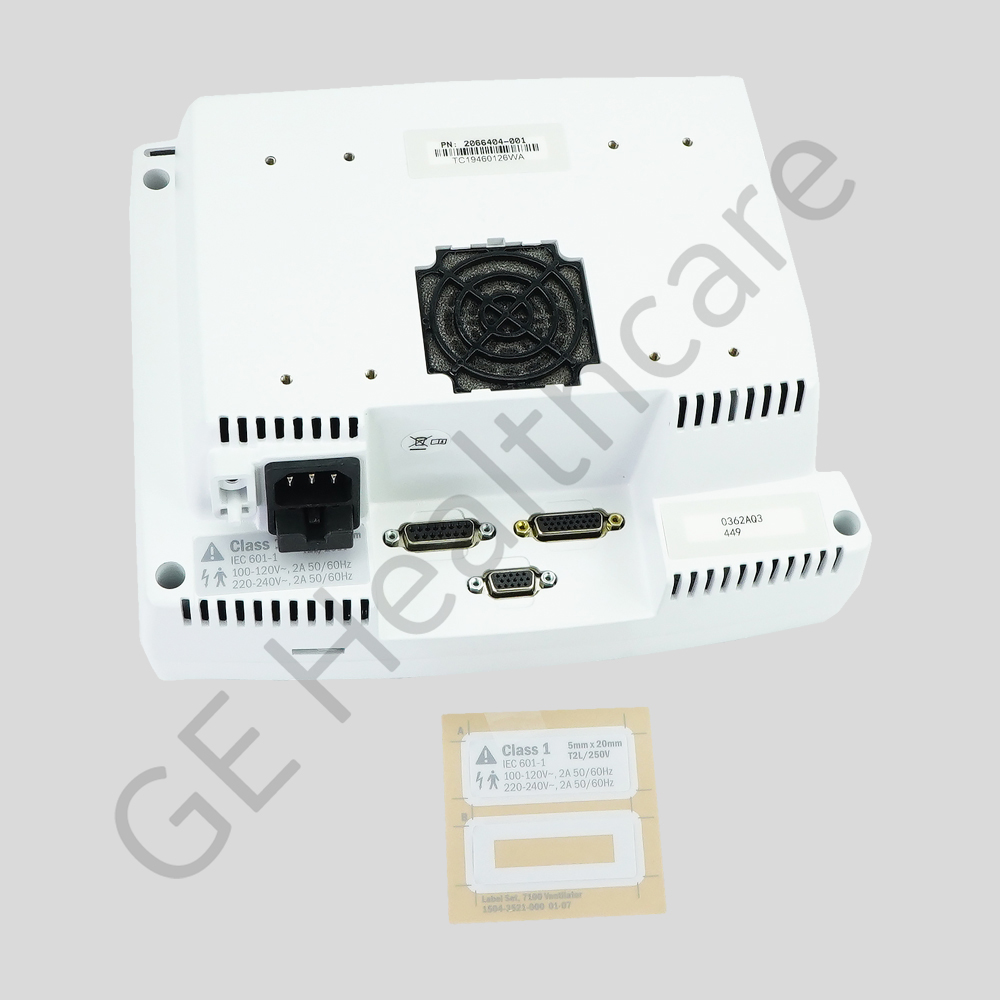

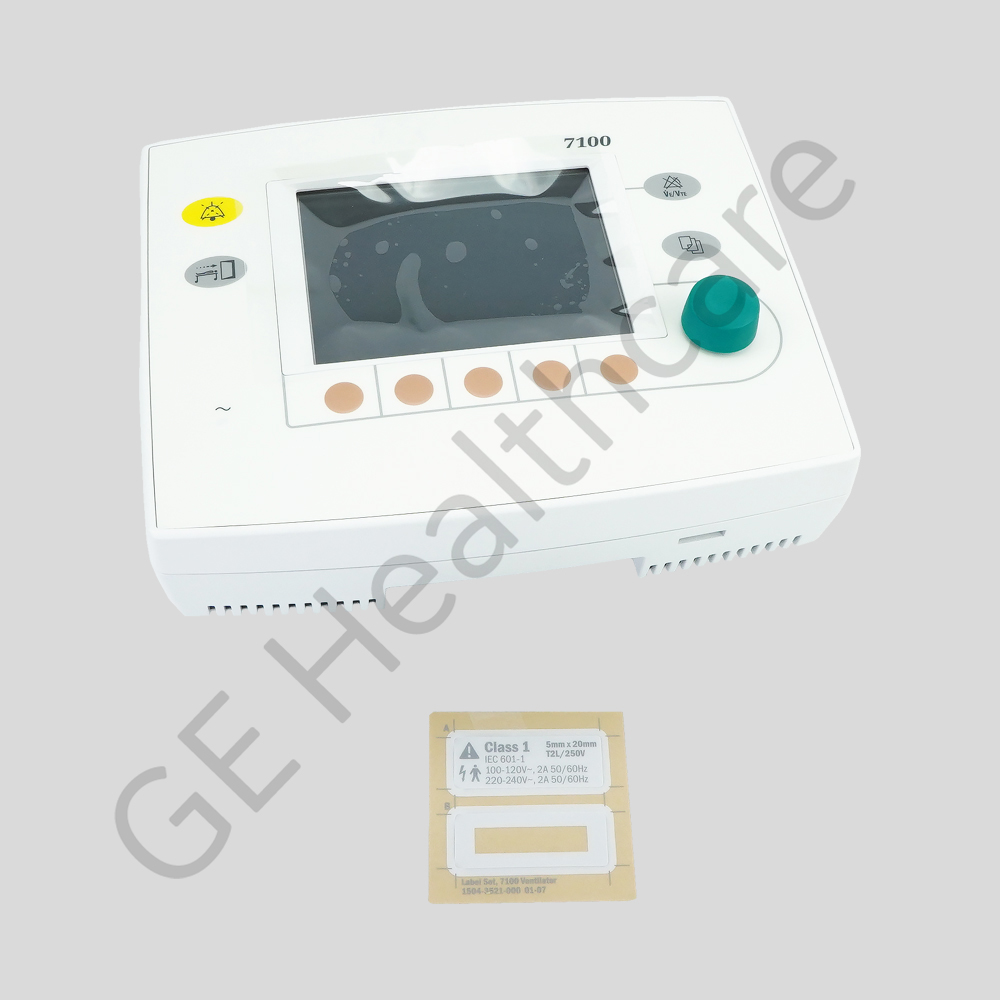

The Color Control Module 7100 Vent with 2.1 Software is used in the anesthesia delivery system used in Aspire 7100 machines. The control module is a major component of the ventilator system. The ventilator is an integral component of the Aespire 7100 anesthesia machine. The ventilator is a microprocessor based, electronically-controlled, pneumatically driven ventilator with a built-in monitoring system for inspired oxygen, airway pressure and exhaled volume. The control module is mounted on either a folding mount or on a display arm. In addition to the power cord signals between the control module and the machine mounted components are sent through three cables that pass through the side of the machine and connect to the rear of the control module. The color control module consists of a control board, LCD display, power supply, keyboard and a backup supply. It is of two enclosures, the front enclosure and the rear enclosure. The front enclosure consists of a control board, backlight inverter, color LCD display, keyboard front panel, rotary encoder, speaker and the rear enclosure consists of inline fuses, power supply, cooling fan and backup battery. It receives Alternating Current (AC) power supply from the anesthesia machine. This module is used in products like Aespire 7100, Aespire 100 and S/5 Protiva anesthesia machines.
동등 품목:
아래는 동등한 부품에 대한 자세한 정보입니다. 하이퍼 링크가없는 부품은 참조 용으로 만 나열되며 온라인으로 구입할 수 없습니다.
| 동등 품목 | 제품 세부 사항 |
|---|---|
| M1106333 | --OBS-- ASSY-WXC, COLOR CONTROL MODULE ASSY 7100 VENT-SERVIC |
